Medical Gas Pipeline
The best gas reliant equipment in the world does not perform if the Gas Pipeline System fails. Colonial will assist owners, employees, architects and engineers in designing the system that exceeds today's standards for tomorrow's needs.

Western FHM2 Medical Manifold Western FHM2 Medical Manifold
-automatic system designed for medical applications requiring uninterrupted gas service throughout the cylinder bank changeover cycle.

Meeting NFPA-99 2005 requirements for safety and performance, the manifold is appropriate for a wide range of medical gas applications in hospitals, dental clinics and other healthcare facilities. All systems are 100% assembled and tested by Western before they are shipped.

The manifold control units feature easy-to-read displays which clearly indicate pressure status of both cylinder banks and line pressure.

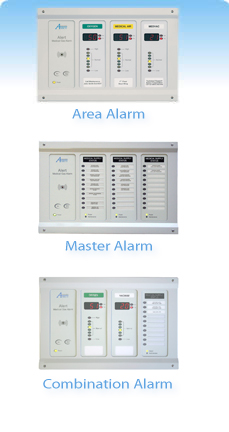

The Amico ALERT-2 medical gas alarm is used by hospital personnel to monitor gas pressures and vacuum levels of the medical gas pipeline. All gases or vacuum levels are displayed with large red LED's for clear visibility, readable even in dim lighting conditions.

A trend bar is provided to show the direction of the gas/vacuum pressure.
Pressure:
HIGH - 60psi / LOW - 40psi / Normal - 50psi

Nitrogen:
HIGH - 195psi / LOW - 140psi / Normal 165psi

Vacuum:
LOW - 12 inHg / Normal - 20 inHg

Master alarms monitor source equipment, such as: Air Compressors, Vacuum Pumps, High/Low Pressure Switches, Manifolds and other pipeline devices. Up to 60 devices can be monitored on each alarm.

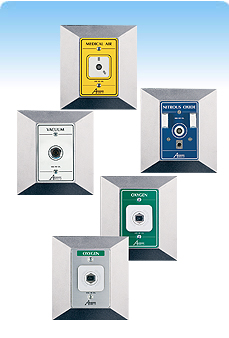

The Amico medical gas outlets are designed for gas distribution in centralized areas of hospitals, dental clinics and veterinary facilities; Patient rooms, operating areas, Surgery centers and Dental offices. Outlets are available in four styles:
DISS
(Diameter-Index Safety System)

MEDAES®/Ohmeda Compatible
(Quick Connect)

Chemetron Compatible
(Quick Connect)

Puritan Bennett Compatible
(Quick Connect)

All Amico outlets are available in Retro-Fit models.

US and ISO colors are available. Outlets are available for walls, headwalls, consoles, ceilings and ceiling columns.

Ambulance Emergency Medical Services (EMS) Medical Outlets are also available in several configurations, including: "Passive" and "Terminating" applications with DISS or Hose Barb back connections.

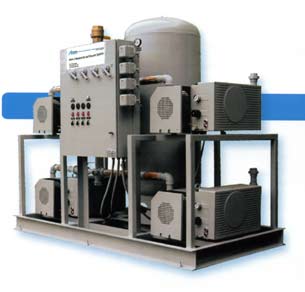

Medical Vacuum Services

  • Lubricated Rotary Vane systems
  • Dry Rotary Vane systems
  • Oil-sealed Liquid Ring systems
  • Water-sealed Liquid Ring systems
  • Tank and stack mounted designs
  • Interface to AIMS
