Anesthesia Accessories

IMPAC6 RC2 accessories
  • Anesthesia Breathing Circuits
  • Non-Rebreathing Circuits
  • Tubing and Adapters
  • Anesthesia Bags
  • Breathing Circuits
  • Tubing Adapters
  • Masks
  • Nose cones
  • Induction Chambers
  • Custom High Pressure Hose Assembly
  • Charcoal Canisters

CX Series Non-Rebreathing (NRB) Systems

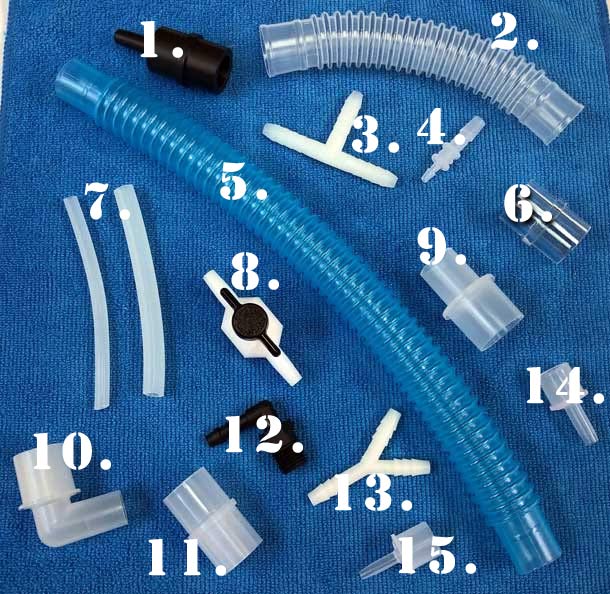

Pictured above:

  1. PART #931315, ADAPTER 22MM X ¼" TUBING BARB
  2. PART #931436, 22MM TUBING PER FOOT
  3. PART #TEE, ¼" TUBING TEE
  4. PART #US-64370, ADAPTER 1/8" TO ¼"
  5. PART #931435, 19MM TUBING PER FOOT
  6. PART #304501, 22MM OD & 15MM ID
  7. PART #172104, ¼" SILICONE TUBING
  8. PART #921433, STOPCOCK
  9. PART #81915B, TOP HAT ADAPTER
  10. PART #06113, MASK ELBOW
  11. PART #81915, ADAPTER
  12. PART #BARB-1.4, TUBING ¼" X 1/8" NPT
  13. PART #304789, ¼" TUBING WYE
  14. PART #00-309-05, ET ADAPTER ¼"
  15. PART #00-309-03, ET ADAPTER 1/8"
  16. PART#2800546, 1/8" SILICONE TUBING

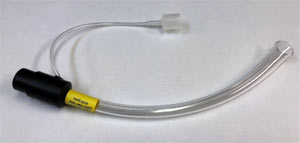

Modified Bain CircuitModified Bain Circuit

A smaller-than-standard Bain circuit with the fresh gas delivery tube inside the reservoir/waste gas tube. The fresh gas delivery tube is 1/16" ID, the containment/reservoir tube is 1/4" ID with the nose end flared to create an anesthesia facemask. Connects to standard 19mm and 22mm evacuation tubing or ask us about option for house vacuum connection.

PART #941461 9mm nosecone circuit
PART #941462 12.5mm nosecone circuit
PART #941463 14mm nosecone circuit


VetEquip Induction ChambersVetEquip Induction Chambers

  • Positive sealing gasket at lid to help prevent leakage.
  • Confines models while allowing anesthetic gas to be circulated throughout the chamber.
  • Large easy-to-use latches
  • Standard anesthesia size inlet and outlet ports.
  • Durable, clear acrylic construction.
  • Non-skid feet

PART #941443 Induction Chamber, 1 Liter, 3.75"W x 4.50"D x 3.75"H
PART #941444 Induction Chamber, 2 Liter 3.75"W x 9.00"D x 3.75"H
PART #941448 Induction Chamber, 7 Liter 8.25"W x 8.75"D x 5.75"H
PART #941454 Induction Chamber, 15 Liter, 15.00"W x 7.50"D x 7.75"H

VetEquip Induction Chambers

PART #942102 Vented Induction Chamber - 2 liter, Overall: 13.0" x 5.5" x 6.0"
PART #941447 Vented Induction Chamber - 7 liter

NOTE: Ideally vented chambers would be connected to in house exhaust with a minimum of 11CFM air movement. In absence of that, you may connect to the VetEquip Scavenging Cube, Extract-All or Filtermate Exhaust units.


The Rodent Isoflurane FacemaskThe Rodent Isoflurane Facemask

Anatomically correct design minimizes leakage and risk to the technician, as well as optimizing accessibility. Includes choice of three mask sizes, silicone tubing and proper connections for passive or active waste gas scavenging.

PART # OS-3 (complete set with tubing and connections)
PART # XRM-S, XRM-M, XRM-L, XRM-XL (individual sizes)

VetEquip Dual Procedure Circuit

VetEquip Dual Procedure CircuitAllows one anesthesia machine to be used for simultaneous multi-patient induction and single-patient maintenance.

Includes:

  • 2-liter Induction Chamber
  • Mapleson E Breathing Circuit
  • 2 Activated Charcoal Filters
  • 2 Stopcocks
  • 6 feet - 22mm evacuation FlexHose
  • 15mm friction connector for easy connection to existing anesthesia machine
  • PART #921400

CX Series Non-Rebreathing (NRB) SystemsCX-R Non-Rebreathing System

Designed for use with rodents up to 400 grams, the CX-R will effectively scavenge up to 100% of all waste anesthetic gases when connected to an externally vented in-house vacuum or stand alone vacuum source with charcoal filter like the VetEquip Scavenging Cube.

PART #921616
